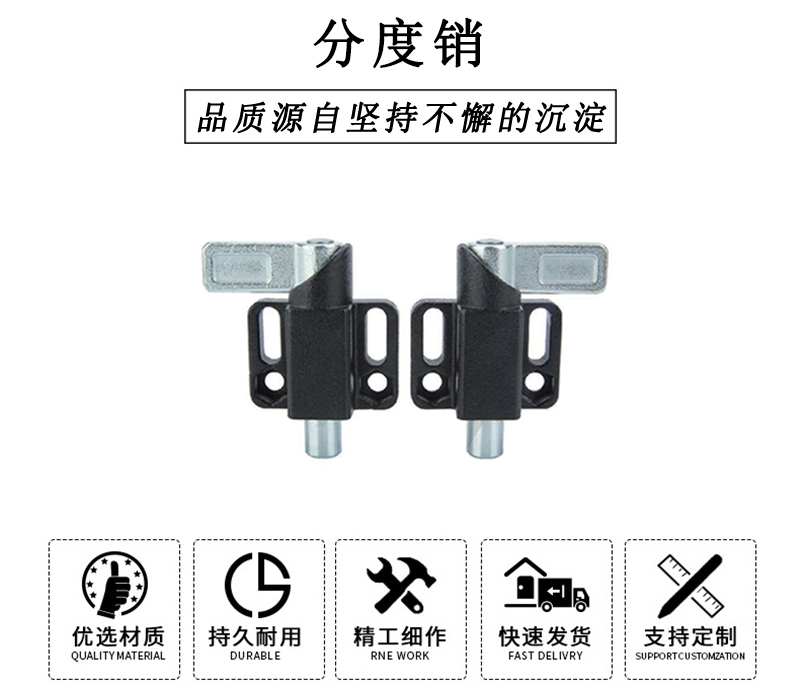

分度销

产品名称分度销

产品货号 HL.247

执行标准

主要材料

主要配件

主体颜色

产品优点

产品名称分度销

产品货号 HL.247

执行标准

主要材料

主要配件

主体颜色

产品优点

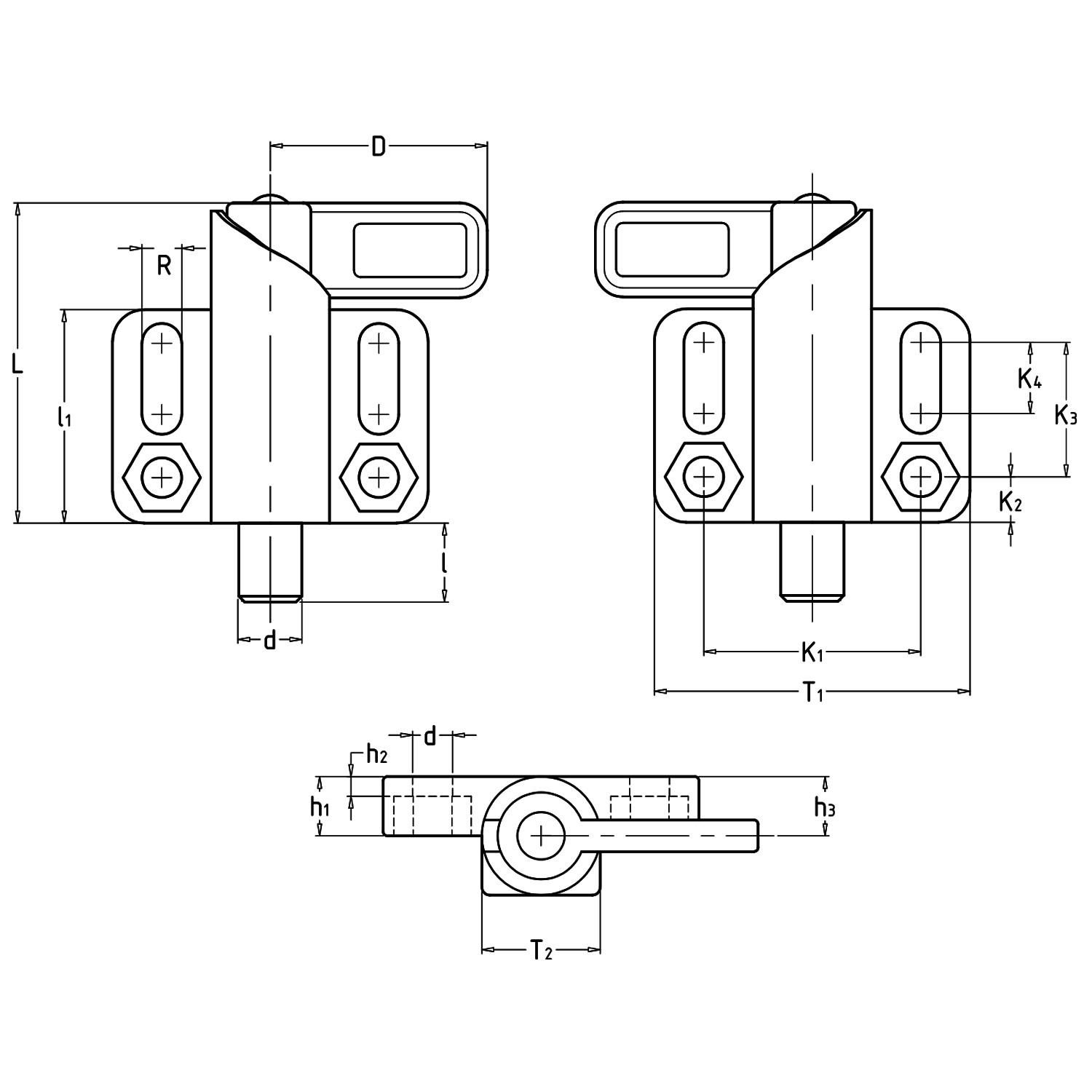

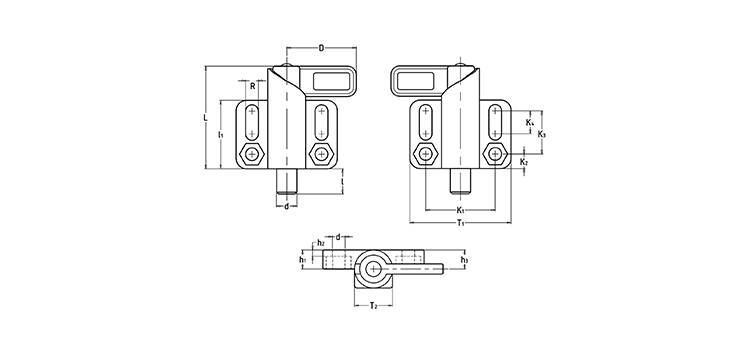

产品图纸

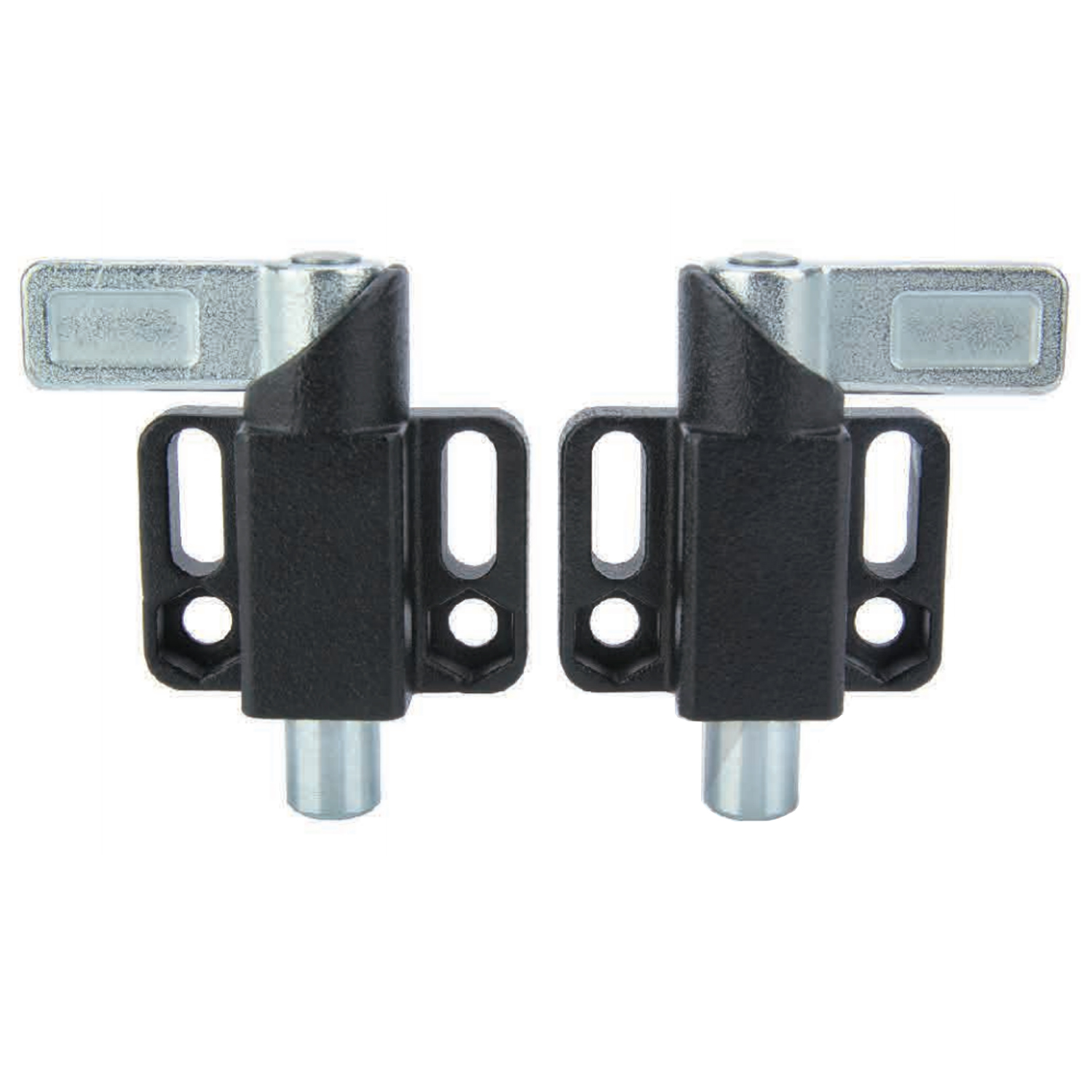

实物预览
3D预览

3D预览

产品详情

model	Type	Body		Knob	Pin		Spring
		Material	Surface	Material	Material		Material
HL247-L	Left rotation	Steel	Blackened	Steel	Steel	zinc	Stainless Steel
HL247-R	right rotation
HL247-LN	Left rotation	Stainless Steel	…	Stainless Steel	Stainless Steel	…
HL247-RN	right rotation

huali	T2	d	l	D	L	L1	R	T1	K1	K2	K3	K4	h1	h2	h3	A/F	d
HL247-L-20-8-14	20	8	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-L-20-10-14	20	10	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-L-20-12-14	20	12	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-L-20-14-14	20	14	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-L-30-16-20	30	16	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
HL247-L-30-20-20	30	20	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
huali	T2	d	l	D	L	L1	R	T1	K1	K2	K3	K4	h1	h2	h3	A/F	d
HL247-LN-20-8-14	20	8	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-LN-20-10-14	20	10	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-LN-20-12-14	20	12	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-LN-20-14-14	20	14	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-LN-30-16-20	30	16	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
HL247-LN-30-20-20	30	20	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
huali	T2	d	l	D	L	L1	R	T1	K1	K2	K3	K4	h1	h2	h3	A/F	d
HL247-R-20-8-14	20	8	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-R-20-10-14	20	10	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-R-20-12-14	20	12	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-R-20-14-14	20	14	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-R-30-16-20	30	16	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
HL247-R-30-20-20	30	20	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
huali	T2	d	l	D	L	L1	R	T1	K1	K2	K3	K4	h1	h2	h3	A/F	d
HL247-RN-20-8-14	20	8	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-RN-20-10-14	20	10	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-RN-20-12-14	20	12	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-RN-20-14-14	20	14	14	37	54	35	6.1	48	34	7.5	18	12	7.5	1.5	10	10	6.1
HL247-RN-30-16-20	30	16	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
HL247-RN-30-20-20	30	20	20	55	83	54	10.1	80	55	14	34	10	15	5	15	17	10.1
